How Nitro Works
Nitro lets you get working with Docker without having to learn Docker.
# Nitro & Docker
It helps to be familiar with containers and Docker concepts if you get into advanced customization, but all Nitro requires is that you install Docker.
You can add your own Docker images, but if you want to fully Dockerize your development workflow Nitro may not be for you. (But Docker or Docker Compose (opens new window) might be!)
If you run your own Docker setup, you’re welcome to use the official Craft CMS Docker images (opens new window) Nitro relies on.
The benefit is you can leave your code exactly as it is; Nitro doesn’t add any dependencies or require you to store devops configuration in your repository—just the ephemeral path and database credentials you’d set in any environment.
# Docker Performance
Unless you’re on Linux, Docker Desktop runs in a virtual machine on your system. Docker’s performance and resource usage depends heavily on your machine specs and Docker settings, so we recommend a bit of performance tuning for the best experience.
Nitro is built to utilize resources efficiently, with small container sizes, shared database engines and services, and design decisions that try to be respectful of its footprint.

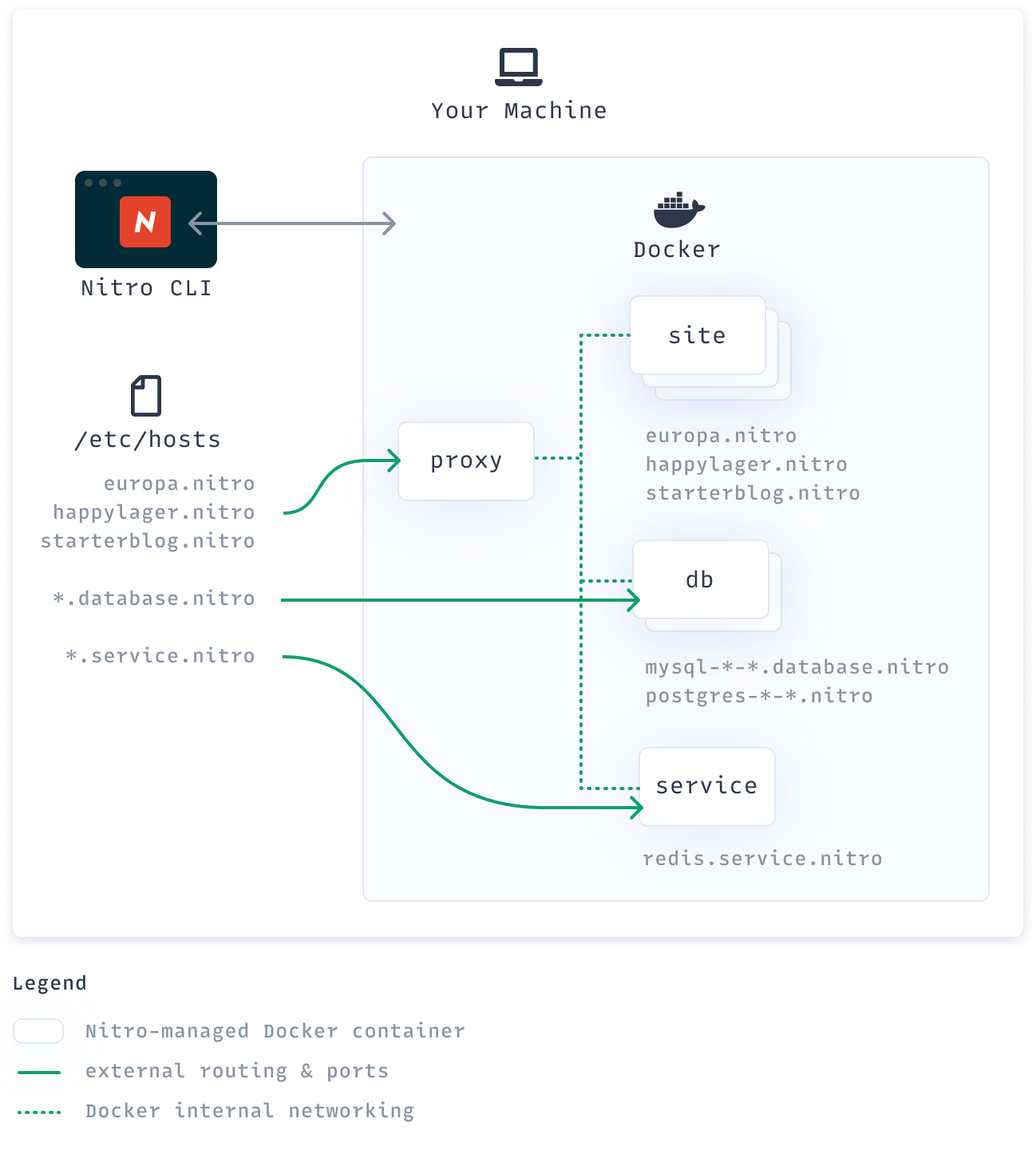

# Architecture
# CLI & Docker
The Nitro CLI is a Go app (opens new window) that’s compiled into a binary for your OS. When you run nitro commands, Nitro acts like a concierge to manage Docker containers for local development.
# Hosts & Networking
Nitro attempts to edit your machine’s hosts file so you can use its custom domain names externally, like accessing a site in a browser or connecting a GUI app to one of the database engines. These external routes and ports are customizable so you can avoid port conflicts on your machine.

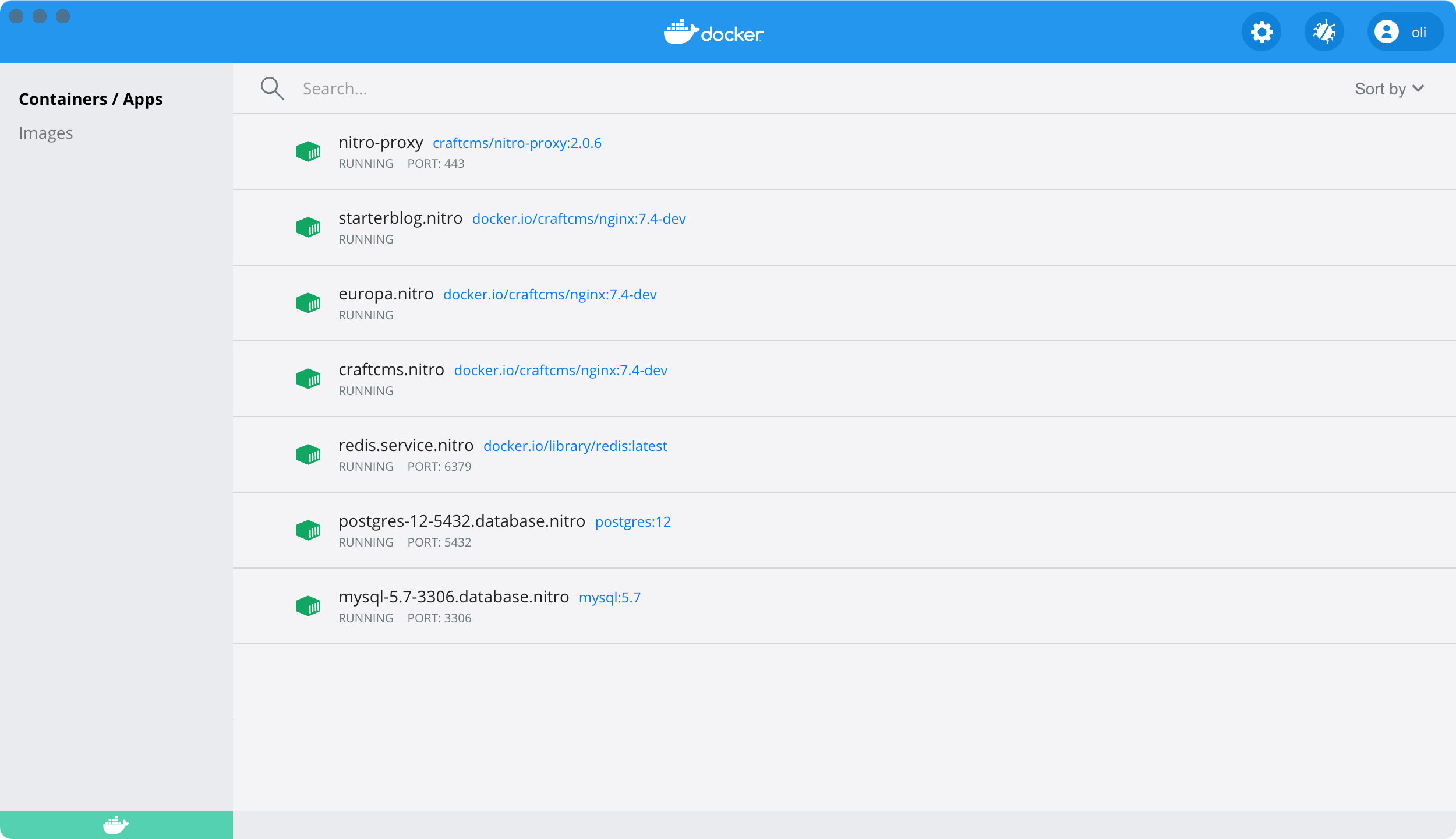

You can open Docker Desktop to see the containers Nitro creates for you. They’re distributed like a tiny datacenter with its own internal networking and meant to be safely running simultaneously.
A big architectural change for Nitro 2 was the addition of the proxy container that routes requests to each of your sites. This listens on port 80 and 443 by default and reverse-proxies the site containers, providing TLS and preventing port collisions as you run multiple sites simultaneously.
# Sites
Each site has its own PHP, Git, and npm+Node.js version and can be independently configured to use Xdebug, customized PHP settings, and extensions. It exposes ports 8080, 9000, and 9003 to the proxy, which you can reach via the hostname on ports 80 (http) and 443 (https) from your host machine.
# Site Paths
Each site uses its own container, a virtual environment that’s sort of like a machine within your machine. The filesystem paths Craft uses will be relative to this container and not your host machine, which is important to know when you’re configuring Craft to use any paths.
When you create a Nitro site, you map a directory on your machine—like /Users/oli/dev/my-project—to a container, where it becomes /app:
| Host Machine Path | Nitro Container Path |
|---|---|
/Users/oli/dev/my-project | /app |
/Users/oli/dev/my-project/web | /app/web |
/Users/oli/dev/my-project/web/assets | /app/web/assets |
This is what happens by default; if you configure your Nitro site with a higher path and deeper web root…
path: ~/dev
webroot: my-project/web
…the paths above would be /app/my-project, /app/my-project/web, and /app/my-project/web/assets respectively.
If you’re seeing an error about a path like this, you may need to adjust a machine-relative path to one of these container-relative paths Craft can see:
Invalid Configuration – yii\base\InvalidConfigException
/Users/oli/dev/my-project/web/cpresources doesn’t exist or isn’t writable by PHP.
If you prefer to learn by adventure, use the nitro ssh command to pop into the site container and look around. (You can always use pwd to output the current directory.)
# Databases
Each database engine has its own container and can host however many databases you need.
You can access a database container from your host machine using its hostname and external port, while you’ll need to use its hostname and internal port when referencing it from inside a container. (Typically this will be the default port like 3306 for MySQL or 5432 for Postgres, regardless of the external port being used.)
A database engine’s hostname includes version and connection details. We can tell from postgres-12-5433.database.nitro, for example, that we have Postgres 12 running on a non-standard external port (5433 instead of 5432). From a GUI app like TablePlus on our host machine, we’d connect with that hostname using port 5433. Our .env file within a web container, however, would use the exact same hostname and the default port 5432.
# Services
Like database engines, each service will have its own container that may be shared by other sites. You can use nitro container to add or remove your own Docker container. Its custom hostname will follow the pattern with database and service containers.
# Updating
When you update the Nitro CLI with nitro self-update or brew upgrade nitro, you’ll get the latest version with updated code for talking with Docker. Running nitro update will check the running containers and rebuild them with freshly-pulled Docker images if necessary so that both the Nitro CLI and the containers it’s working with are completely up to date.
