Matrix Fields
Matrix fields allow you to create multiple blocks of content within a single field.
# Settings
Matrix fields have the following settings:
- Configuration – This is where you configure which block types should be available to your Matrix field, and which sub-fields each of those block types should have.
- Min Blocks – The minimum number of blocks that can be created within the field. (Default is no lower limit.)
- Max Blocks – The maximum number of blocks that can be created within the field. (Default is no upper limit.)
# The Field

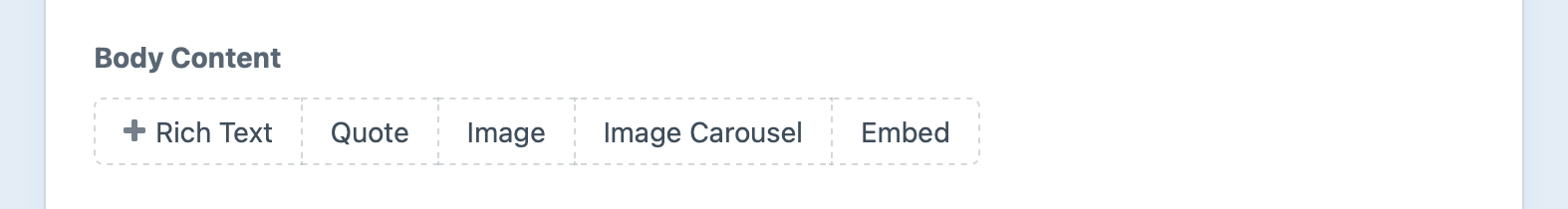

On a fresh entry, Matrix fields will just show a group of buttons – one for each of the Block Types you created in the field’s settings:

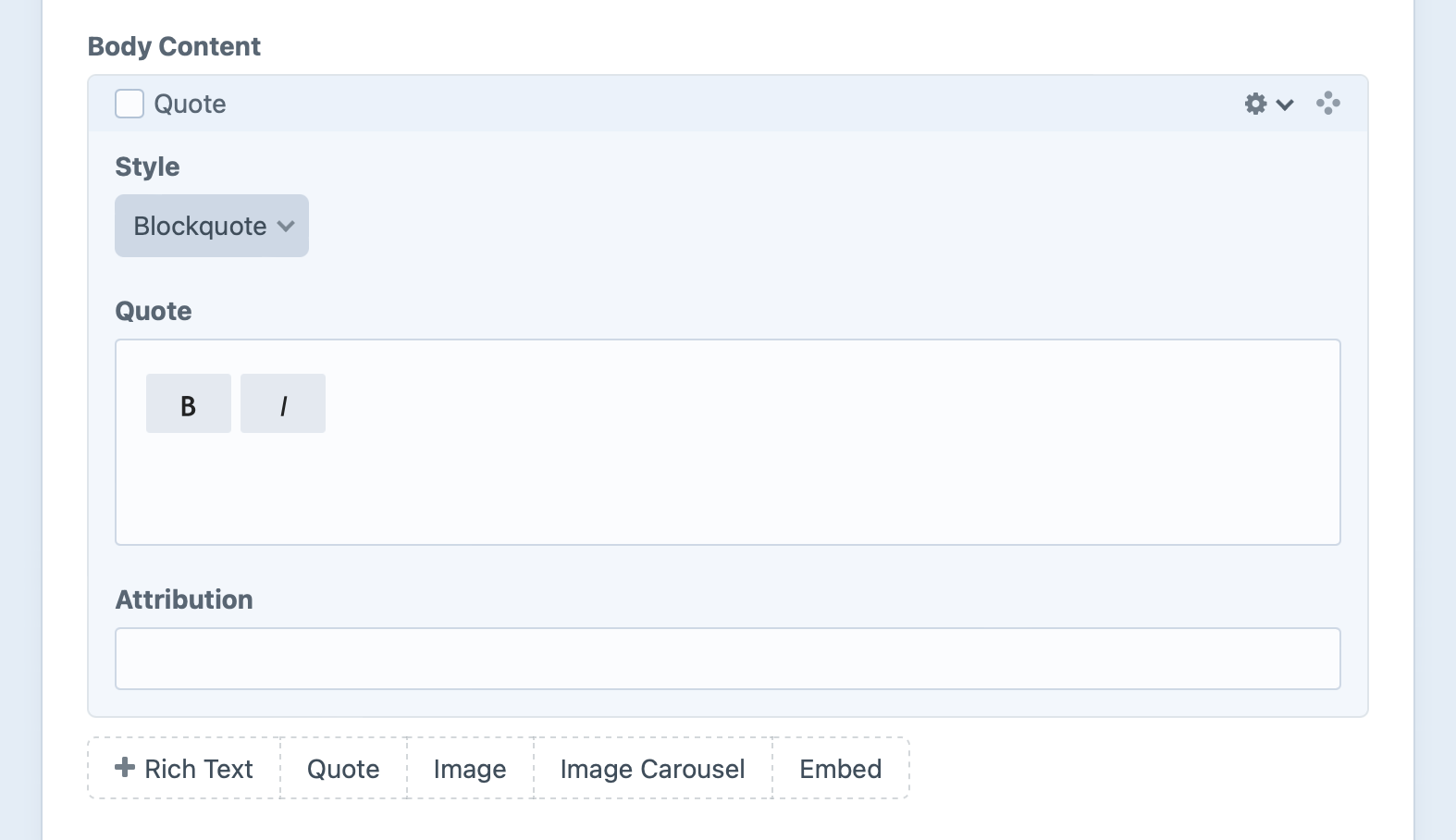

When you click on one of those buttons, a new block will be created. The Block Type’s name will be shown in the block’s title bar, and each of the Block Type’s fields will be present within the body of the block:
You can add as many blocks to your Matrix field as you’d like—or at least as many as the field’s Min Blocks and Max Blocks settings allow.

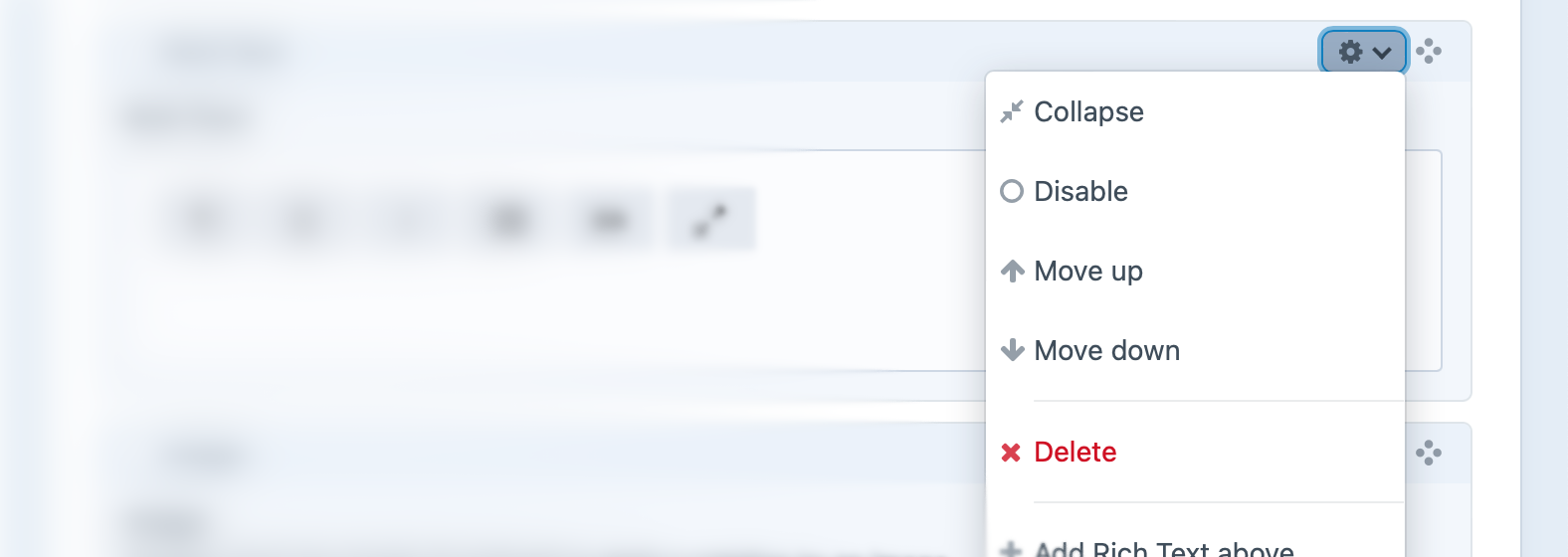

Each block has a settings menu that reveals additional things you can do with the block:
If multiple blocks are selected, the Collapse/Expand, Disable/Enable, and Delete options will apply to each of those selected.
You can collapse Matrix blocks by choosing the Collapse menu option or by double-clicking on a block’s title bar. When a block is collapsed, its title bar will show a preview of its content so you can still identify which block it is.
Blocks can also be reordered by dragging the “Move” icon (
You can quickly select all blocks by selecting one and pressing Ctrl/⌘ + A, or selecting a range of blocks starting with the first and then Shift-clicking the last.
# Development
# Querying Elements with Matrix Fields
When querying for elements that have a Matrix field, you can filter the results based on the Matrix field data using a query param named after your field’s handle.
Possible values include:
| Value | Fetches elements… |
|---|---|
':empty:' | that don’t have any Matrix blocks. |
':notempty:' | that have at least one Matrix block. |
100 | that have a Matrix block with an ID of 100. |
[100, 200] | that have Matrix blocks with IDs of 100 or 200. |
| a MatrixBlock (opens new window) object | that have the Matrix block. |
| an array of MatrixBlock (opens new window) objects | that have the Matrix blocks. |
{# Fetch entries with a Matrix block #}
{% set entries = craft.entries()
.myFieldHandle(':notempty:')
.all() %}
{# Fetch entries with Matrix block ID 100 or 200 #}
{% set entries = craft.entries()
.myFieldHandle([100, 200])
.all() %}
# Working with Matrix Field Data
If you have an element with a Matrix field in your template, you can access its blocks using your Matrix field’s handle:
That will give you a Matrix block query, prepped to output all the enabled blocks for the given field.
To loop through all the blocks, call all() (opens new window) and loop over the results:
{% set blocks = entry.myFieldHandle.all() %}
{% if blocks|length %}
<ul>
{% for block in blocks %}
{# ... #}
{% endfor %}
</ul>
{% endif %}
All the code you put within the for-loop will be repeated for each Matrix block in the field. The current block will get set to that block variable we’ve defined, and it will be a craft\elements\MatrixBlock (opens new window) model.
Here’s an example of what the template might look like for a Matrix field with four block types (Heading, Text, Image, and Quote). We can determine the current block type’s handle by checking block.type (craft\elements\MatrixBlock::getType() (opens new window)).
{% for block in entry.myFieldHandle.all() %}
{% if block.type == "heading" %}
<h3>{{ block.heading }}</h3>
{% elseif block.type == "text" %}
{{ block.text|markdown }}
{% elseif block.type == "image" %}
{% set image = block.image.one() %}
{% if image %}
<img src="{{ image.getUrl('thumb') }}"
width="{{ image.getWidth('thumb') }}"
height="{{ image.getHeight('thumb') }}"
alt="{{ image.title }}"
>
{% endif %}
{% elseif block.type == "quote" %}
<blockquote>
<p>{{ block.quote }}</p>
<cite>– {{ block.cite }}</cite>
</blockquote>
{% endif %}
{% endfor %}
This code can be simplified using the switch tag.
If you only want the first block, call one() (opens new window) instead of all(), and make sure it returned something:
If you only want to know the total number of blocks, call count() (opens new window).
{% set total = entry.myFieldHandle.count() %}
<p>Total blocks: <strong>{{ total }}</strong></p>
If you just need to check if blocks exist (but don’t need to fetch them), you can call exists() (opens new window):
You can set parameters on the Matrix block query as well. For example, to only fetch blocks of type text, set the type param:
In Craft 3, we recommended cloning these query objects using the clone keyword (opens new window) or clone() Twig function before applying params. This is no longer required in Craft 4, because a new copy of the query is returned each time you access the field property.
# Eager Loading
Matrix blocks can be loaded with their owners using the special .with() query method. Eager-loading can greatly improve performance if you need to output one or more blocks within a list of other elements—like generating summaries from the first block of content in a list of blog posts.
# Saving Matrix Fields
Working with Matrix blocks is significantly more complex than other field types. The form examples that follow assume some familiarity with how Craft routes and handles requests, as well as a willingness to adapt and extend the provided HTML to suit your needs.
If you have an element form (such as an entry form (opens new window)) that needs to contain a Matrix field, you will need to submit your Matrix field’s data in a specific structure. We’re using JSON for the sake of its simple syntax, but the following examples will show you how to build a similarly-structured request with normal form elements:
{
"sortOrder": [
321,
654,
"new:1"
],
"blocks": {
"321": {
"type": "myFirstTypeHandle",
"fields": {
"myTextFieldHandle": "...",
"myAssetField": [
4,
5,
6
]
}
},
"654": {
"type": "myOtherTypeHandle",
"fields": {
"myNumberField": 42,
"myDateField": {
"date": "2023-01-01",
"time": "00:00",
"timezone": "America/Los_Angeles"
}
}
},
"new:1": {
"type": "myFirstTypeHandle",
"fields": {
"myTextFieldHandle": "...",
"myAssetField": []
}
}
}
}
# Block Order
sortOrder should be submitted as an array of all the block IDs you wish to persist (as well as any new block identifiers), in the order they should be saved.
If you want all existing blocks to persist in the same order they are currently in, then use this template to define your sortOrder array:
{% if entry is defined %}
{% for blockId in entry.myFieldHandle.anyStatus().ids() %}
{{ hiddenInput('fields[myFieldHandle][sortOrder][]', blockId) }}
{% endfor %}
{% endif %}
The sortOrder input elements do not need to be adjacent in the DOM or as POST params—you are free to distribute and collocate them with each block’s data, if you wish.
# Block Data
All of your block data should be nested under a blocks key, and indexed by their IDs. Each block must submit its type (using the desired block type’s handle) and custom field data nested under a fields key.
Here’s how you can output form fields for existing blocks, for a Matrix field with two block types (text and image):
{% if entry is defined %}
{% for block in entry.myFieldHandle.all() %}
{# Prefix the block's input names with `fields[myFieldHandle][blocks][<BlockID>]` #}
{% namespace "fields[myFieldHandle][blocks][#{block.id}]" %}
{{ hiddenInput('type', block.type) }}
{% switch block.type %}
{% case 'text' %}
<textarea name="fields[myTextFieldHandle]">
{{- block.myTextFieldHandle|raw -}}
</textarea>
{% case 'image' %}
{% set images = block.myAssetFieldHandle.all() %}
{% if images|length %}
<ul>
{% for image in block.myAssetFieldHandle.all() %}
<li>
{{ image.getImg({ width: 100, height: 100 }) }}
{{ hiddenInput('fields[myAssetFieldHandle][]', image.id) }}
</li>
{% endfor %}
</ul>
{% endif %}
{% endswitch %}
{% endnamespace %}
{% endfor %}
{% endif %}
Outputting form fields for existing blocks is completely optional. As long as the block IDs are listed in the sortOrder array, they will persist even if they are excluded from the form data.
# New Blocks
To add a block in a front-end form, you’ll need a unique, temporary identifier for it, prefixed with new:. Append that “ID” to the sortOrder array, and use it when constructing the block’s form inputs.
For example, the first new block that is added to the form could have an “ID” of new:1, so its type input name would end up looking like this (ignoring for a moment any namespace tags):
<input type="hidden" name="fields[myFieldHandle][new:1][type]" value="text" />
Then define the form inputs for any additional blocks that should be appended to the input.
{{ hiddenInput('fields[myFieldHandle][sortOrder][]', 'new:1') }}
{# Prefix the block's input names with `fields[myFieldHandle][blocks][new:1]` #}
{% namespace "fields[myFieldHandle][blocks][new:1]" %}
{{ hiddenInput('type', 'text') }}
<textarea name="fields[myTextFieldHandle]"></textarea>
{% endnamespace %}
If you want to make the new block optional, you will need to give the user an opportunity to remove the inputs so they are not included in the request.
The flexibility of Matrix fields often demands some client-side JavaScript—appending blocks of different types, generating temporary IDs, rearranging blocks and updating sort order, etc. are all difficult problems to solve with plain HTML. Craft’s UI relies on a host of control panel-specific scripts and markup—and therefore is generally not usable in the front-end.
However: as long as the data you ultimately POST to Craft conforms to the schema above, it will work! If you have a preferred view library like Vue or React, you may be better prepared than you think—your task then shifts from dealing with manipulating DOM elements to transforming your components’ state into a FormData object (opens new window) with the right parameter names and values.
# Validation Errors
Should you encounter validation issues within a Matrix field, Craft will set a flash and add errors to the main element (under the Matrix field’s handle)—as well as on each block with problems.
In these cases, it’s important to handle the Matrix block data appropriately—the blocks will be available directly on the main element as an array, and do not need to be fetched. In fact, trying to re-load the blocks from the database would mean you are working with the last-persisted state, rather than the blocks populated from the most recent request!
Instead, we’ll try three values:
- Attempt to use the field value as an element query (load the blocks fresh, assuming there are no pending changes hanging in-memory);
- Accept the value, verbatim (assuming Craft has left the in-memory blocks attached, and they don’t need to be queried);
- Default to an empty array (this ensures whatever uses the
blocksvariable later on can safely assume it’s an array);
{% set blocks = entry.myFieldHandle.all() ?? entry.myFieldHandle ?? [] %}
The null-coalescing operator (opens new window) swallows errors that occur when attempting to access variables, properties, or methods that don’t exist.
Temporary identifiers on new blocks do not need to stay the same between requests (say, if you created two blocks but changed their order, then submitted and hit a validation error); you may output “new” blocks in the order Craft has provided them, re-keying those blocks:
{% for block in blocks %}
{% set id = block.id ?? "new:#{loop.index}" %}
{{ hiddenInput('sortOrder[]', id) }}
{{ hiddenInput("blocks[#{id}][type]", block.type.handle) }}
{# ... #}
{% endfor %}
