Craft Pro provides a GraphQL (opens new window) API you can use to work with your content in separate applications like single-page apps (SPAs) and static site generators.

Getting Started

Make sure you’re running Craft Pro 3.3 or later and the enableGql setting is not set to false.

Because GraphQL is self-documenting, you can jump right into Craft’s included GraphiQL IDE from the control panel and interactively build and execute queries. Querying from the control panel gives you full access to data that’s available, unlike queries from the outside that require an endpoint and appropriate permissions.

Examples

Query

Here’s what a query for two news entries might look like, complete with a formatted dateCreated and custom-transformed featureImage:

• GraphQL
• JSON Response

{
  entries (section: "news", limit: 2, orderBy: "dateCreated DESC") {
    dateCreated @formatDateTime (format: "Y-m-d")
    title
    children {
      title
    }
    ... on news_article_Entry {
      shortDescription
      featuredImage {
        url @transform (width: 300, immediately: true)
      }
    }
  }
}

Relations

You can use relational arguments like relatedToAssets and relatedToEntries to limit results based on relationships to other elements. Their respective types (referenced below) look like [*CriteriaInput], where * will be the name of the target element, and you can pass an array of one or more objects each having the same arguments you’d use in an element query.

We could use the relatedToCategories argument, for example, to narrow our previous example’s news articles to those related to an “Announcements” category:

{
  entries (section: "news", relatedToCategories: [{slug: "announcements"}]) {
    title
  }
}

See Relations for more on Craft’s relational field types.

Mutation

Here’s a mutation, where we’re using the GraphQL API to save a new entry:

• GraphQL
• JSON Response

mutation saveEntry($title: String, $slug: String) {
  save_news_article_Entry(title: $title, slug: $slug) {
    title
    slug
    dateCreated @formatDateTime (format: "Y-m-d")
  }
}

# query variables:
{
  "title": "Craft 3.5 Supports GraphQL Mutations",
  "slug": "craft-graphql-mutations"
}

Setting Up Your API Endpoint

By default, none of your content is available outside of Craft via GraphQL. In order to send GraphQL queries to Craft, we need to establish an endpoint for receiving them and an appropriate set of permissions with a token.

Create a GraphQL Route

You’ll need to establish a route that provides a public endpoint for the GraphQL API.

Create a URL rule from config/routes.php that points to the graphql/api controller action. For example, the following URL rule would cause /api requests to route to the GraphQL API:

return [
    'api' => 'graphql/api',
    // ...
];

Craft sets an access-control-allow-origin: * header by default on GraphQL responses; consider limiting that for security using the allowedGraphqlOrigins setting.

Pretending your endpoint is http://my-project.tld/api, you can verify that it’s configured correctly by sending a {ping} query to it:

curl -H "Content-Type: application/graphql" -d '{ping}' http://my-project.tld/api

If you get a pong in your response, your GraphQL API is up and running!

{"data":{"ping":"pong"}}

The ping test works for any endpoint; content queries depend on your schema setup.

Define Your Schemas

Once you’ve created a GraphQL API endpoint, you need to tell Craft which content should be available from it. You do that by defining a Schema.

Craft has two types of schemas:

1. A single Public Schema that defines which content should be available publicly.
2. Any number of private schemas you create, each having its own secret Access Token.

Any GraphQL API request without a token will use the Public Schema. Craft with otherwise use a valid token to determine the relevant schema.

You can manage your schemas in the control panel at GraphQL → Schemas. In addition to defining the scope of each schema, you can also give them expiration dates, regenerate their tokens, and disable them.

Sending API Requests

Using the GraphiQL IDE

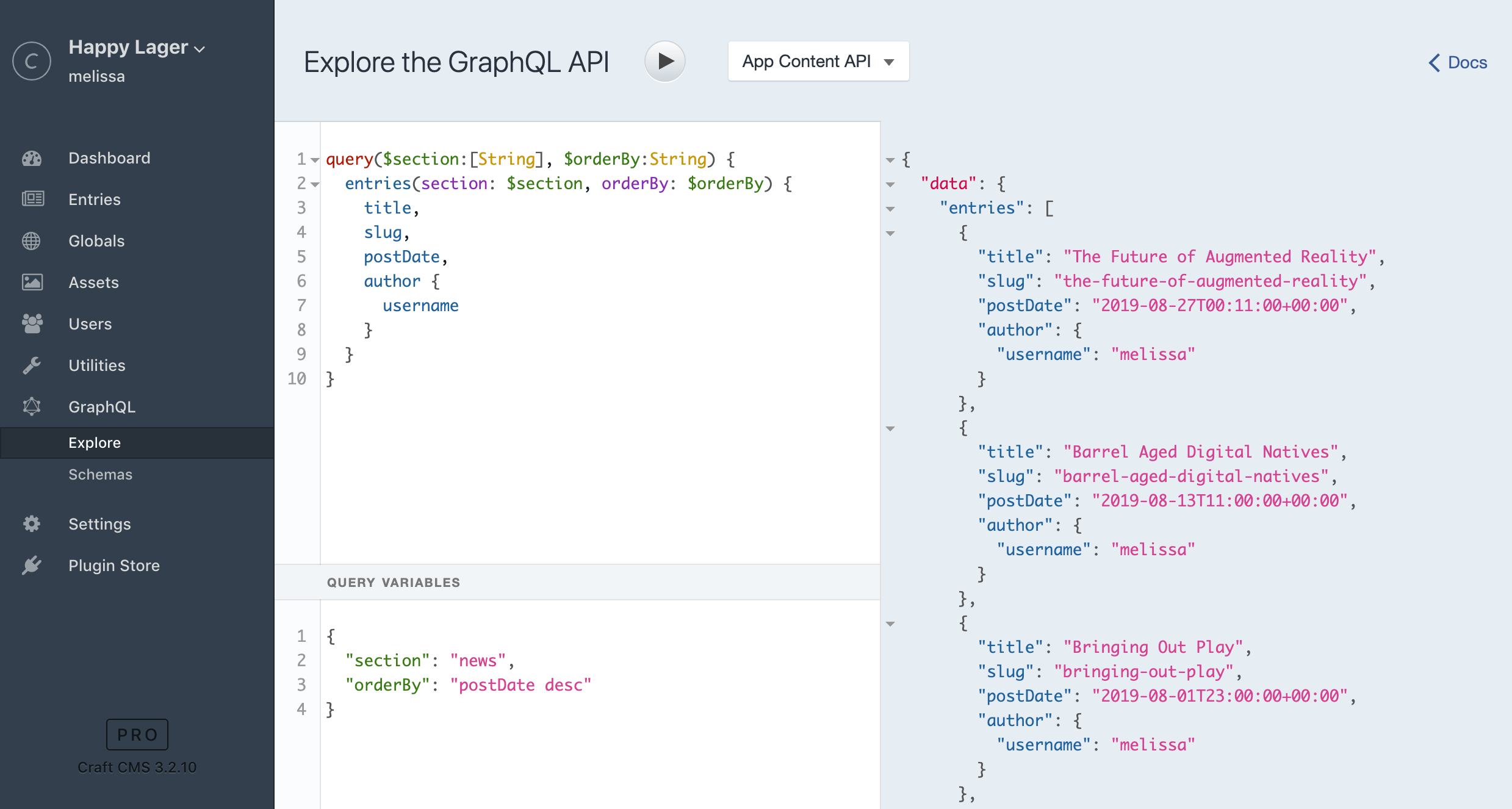

The easiest way to start exploring your GraphQL API is with the built-in GraphiQL (opens new window) IDE, which is available in the control panel from GraphQL → Explore.

The included GraphiQL IDE preselects a special “Full Schema” option for optimal exploration. You can change the applied schema from its dropdown menu.

Using Another IDE

Additional GraphQL IDEs are available as well:

• Insomnia (opens new window)
• GraphQL Playground (opens new window)
• GraphQL Playground online (opens new window)

When you’re initially exploring the API, make sure devMode is enabled so the IDE can be informed about the entire schema available to it.

Sending Requests Manually

The GraphQL API can be queried in three ways:

1. A GET request with the GraphQL query defined by a query parameter:

curl \
  --data-urlencode "query={ping}" \
  http://my-project.tld/api
# or
curl http://my-project.tld/api?query=%7Bping%7D

2. A POST request with an application/json content type and the GraphQL query defined by a query key:

curl \
  -H "Content-Type: application/json" \
  -d '{"query":"{ping}"}' \
  http://my-project.tld/api

3. A POST request with an application/graphql content type and the GraphQL query defined by the raw request body:

curl \
  -H "Content-Type: application/graphql" \
  -d '{ping}' \
  http://my-project.tld/api

Specifying Variables

If you need to specify any variables (opens new window) along with your query, then you must send request as a POST request with an application/json content type, and include a variables key in the JSON body alongside query.

curl \
  -H "Content-Type: application/json" \
  -d '{
        "query": "query($id:[Int]) { entries(id: $id) { id, title } }",
        "variables": { "id": [1, 2, 3] }
      }' \
  http://my-project.tld/api

Querying a Private Schema

The Public Schema is used by default. To query against a different schema, pass its Access Token using an Authorization header.

curl \
  -H "Authorization: Bearer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx" \
  -H "Content-Type: application/graphql" \
  -d '{entries{id}}' \
  http://my-project.tld/api

If you’re unable to query a private schema because of a “missing authorization header”, make sure Craft received it from the web server with a quick post to a test template:

{{ craft.app.getRequest().getHeaders().has('authorization')
  ? 'auth token present ✓'
  : 'auth token missing!' }}

Apache strips Authorization headers by default, which can be fixed by enabling CGIPassAuth (opens new window) or adding the following to your .htaccess file:

RewriteCond %{HTTP:Authorization} ^(.*)
RewriteRule .* - [e=HTTP_AUTHORIZATION:%1]

Caching

Query results are cached by default to speed up subsequent queries, and you can disable that caching with the enableGraphQlCaching setting.

The entire GraphQL cache is purged for any schema changes, otherwise Craft only purges caches based on content changes relevant to a given query. The more specific your query, the less likely its cache will be cleared when an entry is saved or deleted. For example:

• If the query includes the id argument, its caches will only be cleared when that entry is saved or deleted.
• If the query includes type or typeId arguments, its caches will only be cleared when entries of the same type are saved or deleted.
• If the query includes section or sectionId arguments, its caches will only be cleared when entries in the same section are saved or deleted.

Interface Implementation

A defined type exists for each specific interface implementation. For example, if a “News” section has “Article” and “Editorial” entry types, in addition to the EntryInterface interface type, two additional types would be defined the GraphQL schema, if the token used allows it: news_article_Entry and news_editorial_Entry types.

Query Reference

The actual API features will depend on what your schema allows.

The assets query

This query is used to query for assets.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
volumeId	[QueryArgument]	Narrows the query results based on the volumes the assets belong to, per the volumes’ IDs.
volume	[String]	Narrows the query results based on the volumes the assets belong to, per the volumes’ handles.
folderId	[QueryArgument]	Narrows the query results based on the folders the assets belong to, per the folders’ IDs.
filename	[String]	Narrows the query results based on the assets’ filenames.
kind	[String]	Narrows the query results based on the assets’ file kinds.
height	[String]	Narrows the query results based on the assets’ image heights.
width	[String]	Narrows the query results based on the assets’ image widths.
size	[String]	Narrows the query results based on the assets’ file sizes (in bytes).
dateModified	String	Narrows the query results based on the assets’ files’ last-modified dates.
includeSubfolders	Boolean	Broadens the query results to include assets from any of the subfolders of the folder specified by folderId.
withTransforms	[String]	A list of transform handles to preload.
uploader	QueryArgument	Narrows the query results based on the user the assets were uploaded by, per the user’s ID.

The assetCount query

This query is used to return the number of assets.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
volumeId	[QueryArgument]	Narrows the query results based on the volumes the assets belong to, per the volumes’ IDs.
volume	[String]	Narrows the query results based on the volumes the assets belong to, per the volumes’ handles.
folderId	[QueryArgument]	Narrows the query results based on the folders the assets belong to, per the folders’ IDs.
filename	[String]	Narrows the query results based on the assets’ filenames.
kind	[String]	Narrows the query results based on the assets’ file kinds.
height	[String]	Narrows the query results based on the assets’ image heights.
width	[String]	Narrows the query results based on the assets’ image widths.
size	[String]	Narrows the query results based on the assets’ file sizes (in bytes).
dateModified	String	Narrows the query results based on the assets’ files’ last-modified dates.
includeSubfolders	Boolean	Broadens the query results to include assets from any of the subfolders of the folder specified by folderId.
withTransforms	[String]	A list of transform handles to preload.
uploader	QueryArgument	Narrows the query results based on the user the assets were uploaded by, per the user’s ID.

The asset query

This query is used to query for a single asset.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
volumeId	[QueryArgument]	Narrows the query results based on the volumes the assets belong to, per the volumes’ IDs.
volume	[String]	Narrows the query results based on the volumes the assets belong to, per the volumes’ handles.
folderId	[QueryArgument]	Narrows the query results based on the folders the assets belong to, per the folders’ IDs.
filename	[String]	Narrows the query results based on the assets’ filenames.
kind	[String]	Narrows the query results based on the assets’ file kinds.
height	[String]	Narrows the query results based on the assets’ image heights.
width	[String]	Narrows the query results based on the assets’ image widths.
size	[String]	Narrows the query results based on the assets’ file sizes (in bytes).
dateModified	String	Narrows the query results based on the assets’ files’ last-modified dates.
includeSubfolders	Boolean	Broadens the query results to include assets from any of the subfolders of the folder specified by folderId.
withTransforms	[String]	A list of transform handles to preload.
uploader	QueryArgument	Narrows the query results based on the user the assets were uploaded by, per the user’s ID.

The entries query

This query is used to query for entries.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
drafts	Boolean	Whether draft elements should be returned.
draftOf	QueryArgument	Narrows the query results to only drafts of a given element. Set to false to fetch unpublished drafts.
draftId	Int	The ID of the draft to return (from the drafts table)
draftCreator	Int	The drafts’ creator ID
provisionalDrafts	Boolean	Whether provisional drafts should be returned.
revisions	Boolean	Whether revision elements should be returned.
revisionOf	QueryArgument	The source element ID that revisions should be returned for
revisionId	Int	The ID of the revision to return (from the revisions table)
revisionCreator	Int	The revisions’ creator ID
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
withStructure	Boolean	Explicitly determines whether the query should join in the structure data.
structureId	Int	Determines which structure data should be joined into the query.
level	Int	Narrows the query results based on the elements’ level within the structure.
hasDescendants	Boolean	Narrows the query results based on whether the elements have any descendants in their structure.
ancestorOf	Int	Narrows the query results to only elements that are ancestors of another element in its structure, provided by its ID.
ancestorDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by ancestorOf.
descendantOf	Int	Narrows the query results to only elements that are descendants of another element in its structure provided by its ID.
descendantDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by descendantOf.
leaves	Boolean	Narrows the query results based on whether the elements are “leaves” in their structure (element with no descendants).
nextSiblingOf	Int	Narrows the query results to only the entry that comes immediately after another element in its structure, provided by its ID.
prevSiblingOf	Int	Narrows the query results to only the entry that comes immediately before another element in its structure, provided by its ID.
positionedAfter	Int	Narrows the query results to only entries that are positioned after another element in its structure, provided by its ID.
positionedBefore	Int	Narrows the query results to only entries that are positioned before another element in its structure, provided by its ID.
editable	Boolean	Whether to only return entries that the user has permission to edit.
section	[String]	Narrows the query results based on the section handles the entries belong to.
sectionId	[QueryArgument]	Narrows the query results based on the sections the entries belong to, per the sections’ IDs.
type	[String]	Narrows the query results based on the entries’ entry type handles.
typeId	[QueryArgument]	Narrows the query results based on the entries’ entry types, per the types’ IDs.
authorId	[QueryArgument]	Narrows the query results based on the entries’ authors.
authorGroup	[String]	Narrows the query results based on the user group the entries’ authors belong to.
authorGroupId	[QueryArgument]	Narrows the query results based on the user group the entries’ authors belong to, per the groups’ IDs.
postDate	[String]	Narrows the query results based on the entries’ post dates.
before	String	Narrows the query results to only entries that were posted before a certain date.
after	String	Narrows the query results to only entries that were posted on or after a certain date.
expiryDate	[String]	Narrows the query results based on the entries’ expiry dates.

The entryCount query

This query is used to return the number of entries.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
drafts	Boolean	Whether draft elements should be returned.
draftOf	QueryArgument	Narrows the query results to only drafts of a given element. Set to false to fetch unpublished drafts.
draftId	Int	The ID of the draft to return (from the drafts table)
draftCreator	Int	The drafts’ creator ID
provisionalDrafts	Boolean	Whether provisional drafts should be returned.
revisions	Boolean	Whether revision elements should be returned.
revisionOf	QueryArgument	The source element ID that revisions should be returned for
revisionId	Int	The ID of the revision to return (from the revisions table)
revisionCreator	Int	The revisions’ creator ID
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
withStructure	Boolean	Explicitly determines whether the query should join in the structure data.
structureId	Int	Determines which structure data should be joined into the query.
level	Int	Narrows the query results based on the elements’ level within the structure.
hasDescendants	Boolean	Narrows the query results based on whether the elements have any descendants in their structure.
ancestorOf	Int	Narrows the query results to only elements that are ancestors of another element in its structure, provided by its ID.
ancestorDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by ancestorOf.
descendantOf	Int	Narrows the query results to only elements that are descendants of another element in its structure provided by its ID.
descendantDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by descendantOf.
leaves	Boolean	Narrows the query results based on whether the elements are “leaves” in their structure (element with no descendants).
nextSiblingOf	Int	Narrows the query results to only the entry that comes immediately after another element in its structure, provided by its ID.
prevSiblingOf	Int	Narrows the query results to only the entry that comes immediately before another element in its structure, provided by its ID.
positionedAfter	Int	Narrows the query results to only entries that are positioned after another element in its structure, provided by its ID.
positionedBefore	Int	Narrows the query results to only entries that are positioned before another element in its structure, provided by its ID.
editable	Boolean	Whether to only return entries that the user has permission to edit.
section	[String]	Narrows the query results based on the section handles the entries belong to.
sectionId	[QueryArgument]	Narrows the query results based on the sections the entries belong to, per the sections’ IDs.
type	[String]	Narrows the query results based on the entries’ entry type handles.
typeId	[QueryArgument]	Narrows the query results based on the entries’ entry types, per the types’ IDs.
authorId	[QueryArgument]	Narrows the query results based on the entries’ authors.
authorGroup	[String]	Narrows the query results based on the user group the entries’ authors belong to.
authorGroupId	[QueryArgument]	Narrows the query results based on the user group the entries’ authors belong to, per the groups’ IDs.
postDate	[String]	Narrows the query results based on the entries’ post dates.
before	String	Narrows the query results to only entries that were posted before a certain date.
after	String	Narrows the query results to only entries that were posted on or after a certain date.
expiryDate	[String]	Narrows the query results based on the entries’ expiry dates.

The entry query

This query is used to query for a single entry.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
drafts	Boolean	Whether draft elements should be returned.
draftOf	QueryArgument	Narrows the query results to only drafts of a given element. Set to false to fetch unpublished drafts.
draftId	Int	The ID of the draft to return (from the drafts table)
draftCreator	Int	The drafts’ creator ID
provisionalDrafts	Boolean	Whether provisional drafts should be returned.
revisions	Boolean	Whether revision elements should be returned.
revisionOf	QueryArgument	The source element ID that revisions should be returned for
revisionId	Int	The ID of the revision to return (from the revisions table)
revisionCreator	Int	The revisions’ creator ID
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
withStructure	Boolean	Explicitly determines whether the query should join in the structure data.
structureId	Int	Determines which structure data should be joined into the query.
level	Int	Narrows the query results based on the elements’ level within the structure.
hasDescendants	Boolean	Narrows the query results based on whether the elements have any descendants in their structure.
ancestorOf	Int	Narrows the query results to only elements that are ancestors of another element in its structure, provided by its ID.
ancestorDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by ancestorOf.
descendantOf	Int	Narrows the query results to only elements that are descendants of another element in its structure provided by its ID.
descendantDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by descendantOf.
leaves	Boolean	Narrows the query results based on whether the elements are “leaves” in their structure (element with no descendants).
nextSiblingOf	Int	Narrows the query results to only the entry that comes immediately after another element in its structure, provided by its ID.
prevSiblingOf	Int	Narrows the query results to only the entry that comes immediately before another element in its structure, provided by its ID.
positionedAfter	Int	Narrows the query results to only entries that are positioned after another element in its structure, provided by its ID.
positionedBefore	Int	Narrows the query results to only entries that are positioned before another element in its structure, provided by its ID.
editable	Boolean	Whether to only return entries that the user has permission to edit.
section	[String]	Narrows the query results based on the section handles the entries belong to.
sectionId	[QueryArgument]	Narrows the query results based on the sections the entries belong to, per the sections’ IDs.
type	[String]	Narrows the query results based on the entries’ entry type handles.
typeId	[QueryArgument]	Narrows the query results based on the entries’ entry types, per the types’ IDs.
authorId	[QueryArgument]	Narrows the query results based on the entries’ authors.
authorGroup	[String]	Narrows the query results based on the user group the entries’ authors belong to.
authorGroupId	[QueryArgument]	Narrows the query results based on the user group the entries’ authors belong to, per the groups’ IDs.
postDate	[String]	Narrows the query results based on the entries’ post dates.
before	String	Narrows the query results to only entries that were posted before a certain date.
after	String	Narrows the query results to only entries that were posted on or after a certain date.
expiryDate	[String]	Narrows the query results based on the entries’ expiry dates.

The globalSets query

This query is used to query for global sets.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
handle	[String]	Narrows the query results based on the global sets’ handles.

The globalSet query

This query is used to query for a single global set.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
handle	[String]	Narrows the query results based on the global sets’ handles.

The users query

This query is used to query for users.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
email	[String]	Narrows the query results based on the users’ email addresses.
username	[String]	Narrows the query results based on the users’ usernames.
firstName	[String]	Narrows the query results based on the users’ first names.
lastName	[String]	Narrows the query results based on the users’ last names.
hasPhoto	Boolean	Narrows the query results to only users that have (or don’t have) a user photo.
groupId	[QueryArgument]	Narrows the query results based on the user group the users belong to, per the groups’ IDs.
group	[QueryArgument]	Narrows the query results based on the user group the users belong to.

The userCount query

This query is used to return the number of users.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
email	[String]	Narrows the query results based on the users’ email addresses.
username	[String]	Narrows the query results based on the users’ usernames.
firstName	[String]	Narrows the query results based on the users’ first names.
lastName	[String]	Narrows the query results based on the users’ last names.
hasPhoto	Boolean	Narrows the query results to only users that have (or don’t have) a user photo.
groupId	[QueryArgument]	Narrows the query results based on the user group the users belong to, per the groups’ IDs.
group	[QueryArgument]	Narrows the query results based on the user group the users belong to.

The user query

This query is used to query for a single user.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
email	[String]	Narrows the query results based on the users’ email addresses.
username	[String]	Narrows the query results based on the users’ usernames.
firstName	[String]	Narrows the query results based on the users’ first names.
lastName	[String]	Narrows the query results based on the users’ last names.
hasPhoto	Boolean	Narrows the query results to only users that have (or don’t have) a user photo.
groupId	[QueryArgument]	Narrows the query results based on the user group the users belong to, per the groups’ IDs.
group	[QueryArgument]	Narrows the query results based on the user group the users belong to.

The tags query

This query is used to query for tags.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
group	[String]	Narrows the query results based on the tag groups the tags belong to per the group’s handles.
groupId	[QueryArgument]	Narrows the query results based on the tag groups the tags belong to, per the groups’ IDs.

The tagCount query

This query is used to return the number of tags.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
group	[String]	Narrows the query results based on the tag groups the tags belong to per the group’s handles.
groupId	[QueryArgument]	Narrows the query results based on the tag groups the tags belong to, per the groups’ IDs.

The tag query

This query is used to query for a single tag.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
group	[String]	Narrows the query results based on the tag groups the tags belong to per the group’s handles.
groupId	[QueryArgument]	Narrows the query results based on the tag groups the tags belong to, per the groups’ IDs.

The categories query

This query is used to query for categories.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
withStructure	Boolean	Explicitly determines whether the query should join in the structure data.
structureId	Int	Determines which structure data should be joined into the query.
level	Int	Narrows the query results based on the elements’ level within the structure.
hasDescendants	Boolean	Narrows the query results based on whether the elements have any descendants in their structure.
ancestorOf	Int	Narrows the query results to only elements that are ancestors of another element in its structure, provided by its ID.
ancestorDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by ancestorOf.
descendantOf	Int	Narrows the query results to only elements that are descendants of another element in its structure provided by its ID.
descendantDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by descendantOf.
leaves	Boolean	Narrows the query results based on whether the elements are “leaves” in their structure (element with no descendants).
nextSiblingOf	Int	Narrows the query results to only the entry that comes immediately after another element in its structure, provided by its ID.
prevSiblingOf	Int	Narrows the query results to only the entry that comes immediately before another element in its structure, provided by its ID.
positionedAfter	Int	Narrows the query results to only entries that are positioned after another element in its structure, provided by its ID.
positionedBefore	Int	Narrows the query results to only entries that are positioned before another element in its structure, provided by its ID.
editable	Boolean	Whether to only return categories that the user has permission to edit.
group	[String]	Narrows the query results based on the category groups the categories belong to per the group’s handles.
groupId	[QueryArgument]	Narrows the query results based on the category groups the categories belong to, per the groups’ IDs.

The categoryCount query

This query is used to return the number of categories.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
withStructure	Boolean	Explicitly determines whether the query should join in the structure data.
structureId	Int	Determines which structure data should be joined into the query.
level	Int	Narrows the query results based on the elements’ level within the structure.
hasDescendants	Boolean	Narrows the query results based on whether the elements have any descendants in their structure.
ancestorOf	Int	Narrows the query results to only elements that are ancestors of another element in its structure, provided by its ID.
ancestorDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by ancestorOf.
descendantOf	Int	Narrows the query results to only elements that are descendants of another element in its structure provided by its ID.
descendantDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by descendantOf.
leaves	Boolean	Narrows the query results based on whether the elements are “leaves” in their structure (element with no descendants).
nextSiblingOf	Int	Narrows the query results to only the entry that comes immediately after another element in its structure, provided by its ID.
prevSiblingOf	Int	Narrows the query results to only the entry that comes immediately before another element in its structure, provided by its ID.
positionedAfter	Int	Narrows the query results to only entries that are positioned after another element in its structure, provided by its ID.
positionedBefore	Int	Narrows the query results to only entries that are positioned before another element in its structure, provided by its ID.
editable	Boolean	Whether to only return categories that the user has permission to edit.
group	[String]	Narrows the query results based on the category groups the categories belong to per the group’s handles.
groupId	[QueryArgument]	Narrows the query results based on the category groups the categories belong to, per the groups’ IDs.

The category query

This query is used to query for a single category.

Argument	Type	Description
id	[QueryArgument]	Narrows the query results based on the elements’ IDs.
uid	[String]	Narrows the query results based on the elements’ UIDs.
status	[String]	Narrows the query results based on the elements’ statuses.
archived	Boolean	Narrows the query results to only elements that have been archived.
trashed	Boolean	Narrows the query results to only elements that have been soft-deleted.
site	[String]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
siteId	[QueryArgument]	Determines which site(s) the elements should be queried in. Defaults to the current (requested) site.
unique	Boolean	Determines whether only elements with unique IDs should be returned by the query.
preferSites	[QueryArgument]	Determines which site should be selected when querying multi-site elements.
enabledForSite	Boolean	Narrows the query results based on whether the elements are enabled in the site they’re being queried in, per the site argument.
title	[String]	Narrows the query results based on the elements’ titles.
slug	[String]	Narrows the query results based on the elements’ slugs.
uri	[String]	Narrows the query results based on the elements’ URIs.
search	String	Narrows the query results to only elements that match a search query.
relatedTo	[QueryArgument]	Narrows the query results to elements that relate to the provided element IDs. This argument is ignored, if relatedToAll is also used.
relatedToAssets	[AssetCriteriaInput]	Narrows the query results to elements that relate to an asset list defined with this argument.
relatedToEntries	[EntryCriteriaInput]	Narrows the query results to elements that relate to an entry list defined with this argument.
relatedToUsers	[UserCriteriaInput]	Narrows the query results to elements that relate to a use list defined with this argument.
relatedToCategories	[CategoryCriteriaInput]	Narrows the query results to elements that relate to a category list defined with this argument.
relatedToTags	[TagCriteriaInput]	Narrows the query results to elements that relate to a tag list defined with this argument.
relatedToAll	[QueryArgument]	Narrows the query results to elements that relate to all of the provided element IDs. Using this argument will cause relatedTo argument to be ignored. This argument is deprecated. relatedTo: ["and", ...ids] should be used instead.
ref	[String]	Narrows the query results based on a reference string.
fixedOrder	Boolean	Causes the query results to be returned in the order specified by the id argument.
inReverse	Boolean	Causes the query results to be returned in reverse order.
dateCreated	[String]	Narrows the query results based on the elements’ creation dates.
dateUpdated	[String]	Narrows the query results based on the elements’ last-updated dates.
offset	Int	Sets the offset for paginated results.
limit	Int	Sets the limit for paginated results.
orderBy	String	Sets the field the returned elements should be ordered by.
siteSettingsId	[QueryArgument]	Narrows the query results based on the unique identifier for an element-site relation.
withStructure	Boolean	Explicitly determines whether the query should join in the structure data.
structureId	Int	Determines which structure data should be joined into the query.
level	Int	Narrows the query results based on the elements’ level within the structure.
hasDescendants	Boolean	Narrows the query results based on whether the elements have any descendants in their structure.
ancestorOf	Int	Narrows the query results to only elements that are ancestors of another element in its structure, provided by its ID.
ancestorDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by ancestorOf.
descendantOf	Int	Narrows the query results to only elements that are descendants of another element in its structure provided by its ID.
descendantDist	Int	Narrows the query results to only elements that are up to a certain distance away from the element in its structure specified by descendantOf.
leaves	Boolean	Narrows the query results based on whether the elements are “leaves” in their structure (element with no descendants).
nextSiblingOf	Int	Narrows the query results to only the entry that comes immediately after another element in its structure, provided by its ID.
prevSiblingOf	Int	Narrows the query results to only the entry that comes immediately before another element in its structure, provided by its ID.
positionedAfter	Int	Narrows the query results to only entries that are positioned after another element in its structure, provided by its ID.
positionedBefore	Int	Narrows the query results to only entries that are positioned before another element in its structure, provided by its ID.
editable	Boolean	Whether to only return categories that the user has permission to edit.
group	[String]	Narrows the query results based on the category groups the categories belong to per the group’s handles.
groupId	[QueryArgument]	Narrows the query results based on the category groups the categories belong to, per the groups’ IDs.

List of available directives

Directives are not regulated by permissions and they affect how the returned data is displayed.

The formatDateTime directive

Formats a date in the desired format. Can be applied to all fields, only changes output of DateTime fields.

Argument	Type	Description
format	String	The format to use. Can be short, medium, long, full, an ICU date format (opens new window), or a PHP date format (opens new window). Defaults to the Atom date time format (opens new window).
timezone	String	The full name of the timezone (e.g., America/New_York). Defaults to UTC if no timezone set on the field.
locale	String	The locale to use when formatting the date. (E.g., en-US)

The transform directive

Returns a URL for an asset transform (opens new window). Accepts the same arguments you would use for a transform in Craft and adds the immediately argument.

Argument	Type	Description
handle	String	The handle of the named transform to use.
transform	String	The handle of the named transform to use.
width	Int	Width for the generated transform
height	Int	Height for the generated transform
mode	String	The mode to use for the generated transform.
position	String	The position to use when cropping, if no focal point specified.
interlace	String	The interlace mode to use for the transform
quality	Int	The quality of the transform
format	String	The format to use for the transform
immediately	Boolean	Whether the transform should be generated immediately or only when the image is requested used the generated URL

The markdown directive

Parses the passed field value as Markdown.

Argument	Type	Description
flavor	String	The “flavor” of Markdown the input should be interpreted with. Accepts the same arguments as yii\helpers\Markdown::process().
inlineOnly	Boolean	Whether to only parse inline elements, omitting any <p> tags.

The parseRefs directive

Parses the element references on the field.

Predefined interfaces

Craft defines several interfaces to be implemented by the different GraphQL types.

The AssetInterface interface

This is the interface implemented by all assets.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
uploaderId	Int	The ID of the user who first added this asset (if known).
uploader	UserInterface	The user who first added this asset (if known).
volumeId	Int	The ID of the volume that the asset belongs to.
folderId	Int	The ID of the folder that the asset belongs to.
filename	String	The filename of the asset file.
extension	String	The file extension for the asset file.
hasFocalPoint	Boolean	Whether a user-defined focal point is set on the asset.
focalPoint	[Float]	The focal point represented as an array with x and y keys, or null if it’s not an image.
kind	String	The file kind.
size	String	The file size in bytes.
height	Int	The height in pixels or null if it’s not an image.
width	Int	The width in pixels or null if it’s not an image.
img	String	An <img> tag based on this asset.
srcset	String	Returns a srcset attribute value based on the given widths or x-descriptors.
url	String	The full URL of the asset. This field accepts the same fields as the transform directive.
mimeType	String	The file’s MIME type, if it can be determined.
path	String	The asset’s path in the volume.
dateModified	DateTime	The date the asset file was last modified.
prev	AssetInterface	Returns the previous element relative to this one, from a given set of criteria.
next	AssetInterface	Returns the next element relative to this one, from a given set of criteria.

The EntryInterface interface

This is the interface implemented by all entries.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
lft	Int	The element’s left position within its structure.
rgt	Int	The element’s right position within its structure.
level	Int	The element’s level within its structure
root	Int	The element’s structure’s root ID
structureId	Int	The element’s structure ID.
isDraft	Boolean	Returns whether this is a draft.
isRevision	Boolean	Returns whether this is a revision.
revisionId	Int	The revision ID (from the revisions table).
revisionNotes	String	The revision notes (from the revisions table).
draftId	Int	The draft ID (from the drafts table).
isUnpublishedDraft	Boolean	Returns whether this is an unpublished draft.
isUnsavedDraft	Boolean	Returns whether this is an unpublished draft. This field is deprecated. isUnpublishedDraft should be used instead.
draftName	String	The name of the draft.
draftNotes	String	The notes for the draft.
authorId	Int	The ID of the author of this entry.
author	UserInterface	The entry’s author.
draftCreator	UserInterface	The creator of a given draft.
drafts	[EntryInterface]	The drafts for the entry.
revisionCreator	UserInterface	The creator of a given revision.
currentRevision	EntryInterface	The current revision for the entry.
revisions	[EntryInterface]	The revisions for the entry.
canonicalId	Int	Returns the entry’s canonical ID.
canonicalUid	String	Returns the entry’s canonical UUID.
sourceId	Int	Returns the entry’s canonical ID.
sourceUid	String	Returns the entry’s canonical UUID.
sectionId	Int	The ID of the section that contains the entry.
sectionHandle	String	The handle of the section that contains the entry.
typeId	Int	The ID of the entry type that contains the entry.
typeHandle	String	The handle of the entry type that contains the entry.
postDate	DateTime	The entry’s post date.
expiryDate	DateTime	The expiry date of the entry.
children	[EntryInterface]	The entry’s children, if the section is a structure. Accepts the same arguments as the entries query.
descendants	[EntryInterface]	The entry’s descendants, if the section is a structure. Accepts the same arguments as the entries query.
parent	EntryInterface	The entry’s parent, if the section is a structure.
ancestors	[EntryInterface]	The entry’s ancestors, if the section is a structure. Accepts the same arguments as the entries query.
url	String	The element’s full URL
localized	[EntryInterface]	The same element in other locales.
prev	EntryInterface	Returns the previous element relative to this one, from a given set of criteria.
next	EntryInterface	Returns the next element relative to this one, from a given set of criteria.

The GlobalSetInterface interface

This is the interface implemented by all global sets.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
name	String	The name of the global set.
handle	String	The handle of the global set.

The MatrixBlockInterface interface

This is the interface implemented by all matrix blocks.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
fieldId	Int	The ID of the field that owns the matrix block.
ownerId	Int	The ID of the element that owns the matrix block.
typeId	Int	The ID of the matrix block’s type.
typeHandle	String	The handle of the matrix block’s type.
sortOrder	Int	The sort order of the matrix block within the owner element field.

The UserInterface interface

This is the interface implemented by all users.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
friendlyName	String	The user’s first name or username.
fullName	String	The user’s full name.
name	String	The user’s full name or username.
preferences	String	The user’s preferences.
preferredLanguage	String	The user’s preferred language.
username	String	The username.
firstName	String	The user’s first name.
lastName	String	The user’s last name.
email	String	The user’s email.

The CategoryInterface interface

This is the interface implemented by all categories.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
lft	Int	The element’s left position within its structure.
rgt	Int	The element’s right position within its structure.
level	Int	The element’s level within its structure
root	Int	The element’s structure’s root ID
structureId	Int	The element’s structure ID.
groupId	Int	The ID of the group that contains the category.
groupHandle	String	The handle of the group that contains the category.
children	[CategoryInterface]	The category’s children.
parent	CategoryInterface	The category’s parent.
url	String	The element’s full URL
localized	[CategoryInterface]	The same element in other locales.
prev	CategoryInterface	Returns the previous element relative to this one, from a given set of criteria.
next	CategoryInterface	Returns the next element relative to this one, from a given set of criteria.

The TagInterface interface

This is the interface implemented by all tags.

Field	Type	Description
id	ID	The ID of the entity
uid	String	The UID of the entity
_count	Int	Return a number of related elements for a field.
title	String	The element’s title.
slug	String	The element’s slug.
uri	String	The element’s URI.
enabled	Boolean	Whether the element is enabled or not.
archived	Boolean	Whether the element is archived or not.
siteId	Int	The ID of the site the element is associated with.
siteSettingsId	ID	The unique identifier for an element-site relation.
language	String	The language of the site element is associated with.
searchScore	String	The element’s search score, if the search parameter was used when querying for the element.
trashed	Boolean	Whether the element has been soft-deleted or not.
status	String	The element’s status.
dateCreated	DateTime	The date the element was created.
dateUpdated	DateTime	The date the element was last updated.
groupId	Int	The ID of the group that contains the tag.
groupHandle	String	The handle of the group that contains the tag.

Mutations

GraphQL mutations provide a way to modify data. The actual mutations will vary depending on the schema and what it allows. There are common mutations per GraphQL object type and additional type-specific mutations.

Mutations take the data as arguments. In this example, we’re using the type-specific save_news_article_Entry to save a new entry. We’re providing a title and slug and formatting the dateCreated that’s populated automatically when the entry is saved:

• GraphQL
• JSON Response

mutation saveEntry($title: String, $slug: String) {
  save_news_article_Entry(title: $title, slug: $slug) {
    title
    slug
    dateCreated @formatDateTime (format: "Y-m-d")
  }
}

# query variables:
{
  "title": "Craft 3.5 Supports GraphQL Mutations",
  "slug": "craft-graphql-mutations"
}

While mutations are mostly straightforward, there are a few important cases to consider.

Matrix Fields in Mutations

GraphQL’s limited input types can be challenging with complex Matrix fields.

We recommend reading how to save matrix field data in entry forms first if you’ve not saved Matrix field form data.

Matrix input types generally have the following structure:

Field	Description
sortOrder	A list of all the block IDs, including any new blocks, in the order you’d like to persist after the mutation.
blocks	A list of all the actual blocks. You can omit any blocks that aren’t modified, but they must be represented on the sortOrder field or they’ll be deleted.

An actual block input type will contain fields for all the possible block types for this field, however, the first non-empty block will be considered in the order that the block types are defined on the field.

As an example, let’s pretend we have a Matrix field with a handle ingredients.

The field has three block types: spirit, mixer, and garnish. Each block type has one or two fields:

ingredients
├── spirit
│   ├── spiritName (Plain Text)
│   └── ounces (Number)
├── mixer
│   ├── mixerName (Plain Text)
│   └── ounces (Number)
└── garnish
    └── garnishName (Plain Text)

These are all the GraphQL input types Craft generates for this Matrix field:

Type Name	Type Description
ingredients_MatrixInput	Input type for the Matrix field, containing sortOrder and blocks.
ingredients_MatrixBlockContainerInput	Input type that represents the block, in this case containing spirit, mixer, and garnish.
ingredients_spirit_MatrixBlockInput	Input type for the spirit block, containing spiritName and ounces.
ingredients_mixer_MatrixBlockInput	Input type for the mixer block, containing mixerName and ounces.
ingredients_garnish_MatrixBlockInput	Input type for the garnish block, containing garnishName.

Those input types would look like this in GraphQL Schema Definition Language (SDL) (opens new window):

input ingredients_MatrixInput {
  sortOrder: [QueryArgument]!
  blocks: [ingredients_MatrixBlockContainerInput]
}

input ingredients_MatrixBlockContainerInput {
  spirit: ingredients_spirit_MatrixBlockInput
  mixer: ingredients_mixer_MatrixBlockInput
  garnish: ingredients_garnish_MatrixBlockInput
}

input ingredients_spirit_MatrixBlockInput {
  # ... common Matrix Block fields ...
  spiritName: String
  ounces: Number
}

input ingredients_mixer_MatrixBlockInput {
  # ... common Matrix Block fields ...
  mixerName: String
  ounces: Number
}

input ingredients_garnish_MatrixBlockInput {
  # ... common Matrix Block fields ...
  garnishName: String
}

A mutation saving a new entry with multiple Matrix blocks might look like this:

• GraphQL
• JSON Response

mutation saveEntry(
  $title: String,
  $slug: String,
  $authorId: ID,
  $ingredients: [ingredients_MatrixBlockContainerInput],
  $sortOrder: [QueryArgument]
) {
  save_cocktails_cocktails_Entry(
    title: $title,
    slug: $slug,
    authorId: $authorId,
    ingredients: { blocks: $ingredients, sortOrder: $sortOrder }
  ) {
    title
    slug
    authorId
    dateCreated @formatDateTime (format: "Y-m-d")
    ingredients {
      __typename
        ...on MatrixBlockInterface {
          id
        }
        ... on ingredients_spirit_BlockType {
          spiritName
          ounces
        }
        ... on ingredients_mixer_BlockType {
          mixerName
          ounces
        }
        ... on ingredients_garnish_BlockType {
          garnishName
        }
     }
  }
}

# query variables:
{
  "title": "Gin and Tonic",
  "slug": "gin-tonic",
  "authorId": 1,
  "sortOrder": ["new1", "new2", "new3", "new4"],
  "ingredients": [
    {
      "spirit": {
        "id": "new1",
        "spiritName": "Gin",
        "ounces": 2
      }
    },
    {
      "mixer": {
        "id": "new2",
        "mixerName": "Tonic",
        "ounces": 4
      }
    },
    {
      "mixer": {
        "id": "new3",
        "mixerName": "Fresh Lime Juice",
        "ounces": 0.25
      }
    },
    {
      "garnish": {
        "id": "new4",
        "garnishName": "Lime Wedge or Twist"
      }
    }
  ]
}

What field on those objects would contain data would determine the final block type.

If more than one of the block types are defined, only the block type that is listed first will be considered.

Saving Files via Mutations

You can provide files for Assets as either base64-encoded data, or a URL that Craft will download.

Either way you’ll use the FileInput GraphQL input type, which has the following fields:

Field	Description
url	URL of a file to be downloaded.
fileData	File contents in base64 format. If provided, takes precedence over url.
filename	Filename to use for the saved Asset. If omitted, Craft will create a filename.

Mutating Entries

Saving an Entry

To save an entry, use the entry type-specific mutation which will have the name in the form of save_<sectionHandle>_<entryTypeHandle>_Entry:

Argument	Type	Description
id	ID	Set the element’s ID.
uid	String	Set the element’s UID.
title	String	The title of the element.
enabled	Boolean	Whether the element should be enabled.
authorId	ID	The ID of the user that created this entry.
postDate	DateTime	When should the entry be posted.
expiryDate	DateTime	When should the entry expire.
slug	String	Narrows the query results based on the elements’ slugs.
siteId	Int	Determines which site(s) the elements should be saved to. Defaults to the primary site.
...		More arguments depending on the field layout for the type

The id, uid and authorId arguments do not exist for single entries. This is because single entries have no authors and are identified already by the exact mutation. In a similar fashion, there are additional arguments available for structured entries. For more information, refer to mutating structure data.

After saving an entry, Craft runs queue jobs for updating revisions and search indexes. If you’re using Craft headlessly or infrequently accessing the control panel, consider disabling runQueueAutomatically and establishing an always-running daemon (opens new window) to keep revisions and search indexes up to date.

Editing Existing Entries

You can modify existing entries by passing the populated id argument to your mutation.

Saving a Draft

To save a draft for an entry, use the entry type-specific mutation which will have the name in the form of save_<sectionHandle>_<entryTypeHandle>_Draft:

Argument	Type	Description
title	String	The title of the element.
enabled	Boolean	Whether the element should be enabled.
authorId	ID	The ID of the user that created this entry.
postDate	DateTime	When should the entry be posted.
expiryDate	DateTime	When should the entry expire.
slug	String	Narrows the query results based on the elements’ slugs.
siteId	Int	Determines which site(s) the elements should be saved to. Defaults to the primary site.
draftId	ID!	The ID of the draft.
draftName	String	The name of the draft.
draftNotes	String	Notes for the draft.
...		More arguments depending on the field layout for the type

Creating or Publishing a Draft

You can use the createDraft mutation to save a new draft. It requires the id of the draft’s parent entry and returns the ID of the newly-saved draft.

You can publishing a draft using the publishDraft mutation, which requires the id of the draft to be published and returns the ID of the updated parent entry.

Deleting an Entry

You can delete an entry using the deleteEntry mutation, which requires the id of the entry to be deleted. It returns a boolean value indicating whether the operation was successful.

Mutating Assets

Saving an Asset

To create or update an asset, use the volume-specific mutation which will have a name in the form of save_<volumeHandle>_Asset:

Argument	Type	Description
id	ID	Set the element’s ID.
uid	String	Set the element’s UID.
title	String	The title of the element.
enabled	Boolean	Whether the element should be enabled.
_file	FileInput	The file to use for this asset
newFolderId	ID	ID of the new folder for this asset
...		More arguments depending on the field layout for the type

Deleting an Asset

You can delete an asset using the deleteAsset mutation, which requires the id of the asset to be deleted. It returns a boolean value indicating whether the operation was successful.

Mutating Tags

Saving a Tag

To create or update a tag, use the tag group-specific mutation which will have a name in the form of save_<tagGroupHandle>_Tag:

Argument	Type	Description
id	ID	Set the element’s ID.
uid	String	Set the element’s UID.
title	String	The title of the element.
enabled	Boolean	Whether the element should be enabled.
...		More arguments depending on the field layout for the type

Deleting a Tag

To delete a tag, use the deleteTag mutation which requires the id of the tag to be deleted. It returns a boolean value indicating whether the operation was successful.

Mutating Categories

Saving a Category

To create or update a category, use the category group-specific mutation which will have a name in the form of save_<categoryGroupHandle>_Category.

Argument	Type	Description
id	ID	Set the element’s ID.
uid	String	Set the element’s UID.
title	String	The title of the element.
enabled	Boolean	Whether the element should be enabled.
...		More arguments depending on the field layout for the type

Deleting a Category

To delete a category, use the deleteCategory mutation which requires the id of the category to be deleted. It returns a boolean value indicating whether the operation was successful.

Mutating Structure Data

Structure section entries and categories exist with explicit order and nesting relationships. To manipulate their place in the structure, save the elements using the appropriate mutations and use the following arguments:

Argument	Type	Description
prependTo	ID	The ID of the element to prepend to.
appendTo	ID	The ID of the element to append to.
prependToRoot	Boolean	Whether to prepend this element to the root.
appendToRoot	Boolean	Whether to append this element to the root.
insertBefore	ID	The ID of the element this element should be inserted before.
insertAfter	ID	The ID of the element this element should be inserted after.

Mutating Global Sets

To update a global set use the appropriate mutations which will have the name in the form of save_<globalSetHandle>_GlobalSet.

The only available arguments are custom fields on the global set.

Mutating Users

It’s currently not possible to mutate users with Craft’s GraphQL API.

Further Reading

If you’re looking to add GraphQL support in your own plugin or module, see Extending GraphQL.
